Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires

1
MOQ
Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Diametro di ingresso: 38 mm
Diametro di uscita: 6 mm
Voltaggio: 380 V
Energia: 55W
Dimensioni: 2500*2000*2500 mm
Peso: 8000 kg
Diametro del cabestano: 1400 mm
Cavo di ingresso massimo: Ø38mm
Filo di ingresso minimo: Ø6mm
Velocità di tracciamento: 30 m/min
Compressibilità: 25%
Potenza del motore: 75-110 kW
Dimensioni complessive: 3×2,3×2,6M
Componenti principali: Motore
Anno: 2022
Evidenziare:

Long Service Life Wire Drawing Machine

,

Large Capacity Inverted Type Wire Drawing Machine

,

Continuous Working Vertical Drop Type Wire Drawing Machine
Informazioni di base
Luogo di origine: Jiangsu, Cina
Termini di pagamento e spedizione
Descrizione di prodotto
Inverted/Vertical Drop Type Wire Drawing Machine
Product Overview

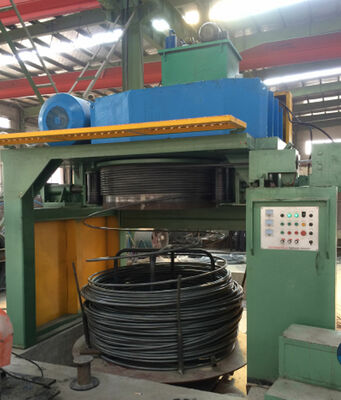

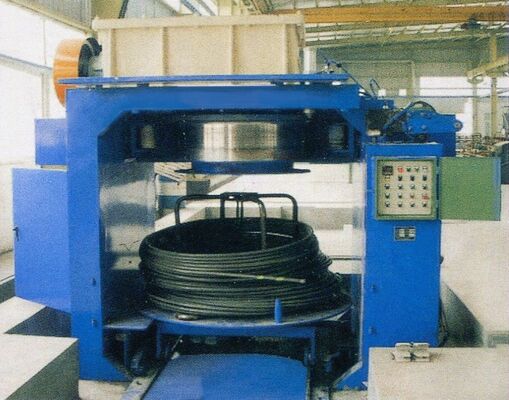

The inverted type wire drawing machine is engineered for large capacity and continuous operation. This robust system integrates both wire drawing and wire coiling processes, making it suitable for processing high, medium, and low-carbon steel wire, profile wire, stainless steel wire, and thick non-ferrous metal wire. The machine features a heavy-duty large recoiler system that facilitates easy wire unloading.
Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 0 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 1 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 2 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 3
Product Specifications
Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 4 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 5 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 6
Model Unit 1400 1200 1000 800
Capstan diameter mm 1400 1200 1000 800
Maximum diameter of inlet wire mm Ø38 Ø28 Ø20 Ø12
Minimum diameter of inlet wire mm Ø12 Ø12 Ø6 Ø6
Drawing speed M/min 30 40 50 70
Designed compressibility % 25 25 25 25
Motor power kw 75-110 55-75 45-55 30-37
Weight kg 10000 8000 6000 5000
Overall dimensions M 3×2.3×2.6 2.8×2.3×2.6 2.5×2×2.5 2.3×1.5×2.5
