Automatic Galvanised Steel Wire Hanger Machine with 27-30pcs/min Capacity for Laundry Hanger Production

1
MOQ
$2,800-3,000
prezzo
Automatic Galvanised Steel Wire Hanger Machine with 27-30pcs/min Capacity for Laundry Hanger Production
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
peso: 750 chilogrammi
Capacità: 27-30 pezzi/minuto
Dimensioni: 1950 x 800 x 1550 mm
Potenza del motore: 1,5 kW
Potere del servomotore: 1 kW
Gamma di dimensioni del gancio: 13" ~ 15" e 16" ~ 18"
Gamma di diametro del filo: φ1,8 ~ 2,8 mm
rilevazione automatica: Sensore di arresto di emergenza
componenti principali: Motore
Tipo di macchina: Macchina automatica per grucce
Modello QK-2(S): 700 kg, 1,95 × 0,8 × 1,55 milioni
Modello QK-3: 720 kg, 2,0 × 0,8 × 1,75 milioni
Modello QK-4: 1100 kg, 2,5 × 1,2 × 1,68 milioni
Modello QK-2(L): 700KG, 1,95×0,8×1,55M
Modello QK-3(L): 720KG, 2,0×0,8×1,75M
Evidenziare:

Automatic Wire Hanger Machine

,

27-30pcs/min Hanger Making Machine

,

Galvanised Steel Wire Hanger Machine
Informazioni di base
Luogo di origine: Jiangsu, Cina
Marca: DURA
Termini di pagamento e spedizione
Descrizione di prodotto

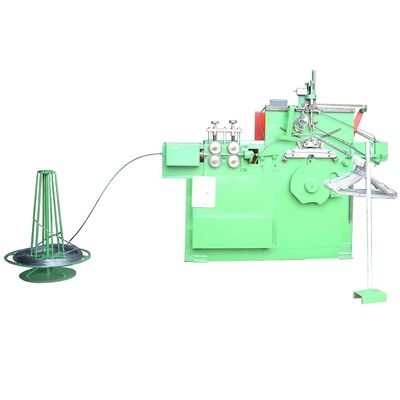

Automatic Laundry Galvanised Steel Wire Hanger Making Machine
Automatic Wire Hanger Making Machine
Key Features
  • Automatic hanger fabrication with high production capacity
  • Automatic detecting sensor for emergency stop functionality
  • Easy operation and simple maintenance requirements
  • Durable dies and lower operational costs
Machine Specifications
Model QK-2(S) QK-3 QK-4
Designed Capacity 27-30 pcs/min 20 pcs/min
Hanger Size Range 13"-15" & 16"-18" 14"-19"
Wire Diameter Range φ1.8-2.8mm φ1.6-4.0mm
Motor Power 1.5KW 2.2KW
Servo Motor Power - 1KW 2KW
Weight 700 KGS 720 KGS 1100 KGS
Overall Dimensions 1.95×0.8×1.55M 2.0×0.8×1.75M 2.5×1.2×1.68M
Automatic Galvanised Steel Wire Hanger Machine with 27-30pcs/min Capacity for Laundry Hanger Production 0
Model QK-2(L) QK-3(L)
Designed Capacity 25-29 pcs/min
Hanger Size Range 20"
Wire Diameter Range φ1.8-3.0mm
Motor Power 1.5KW 1.5KW
Servo Motor Power - 1KW
Weight 700 KGS 720 KGS
Overall Dimensions 1.95×0.8×1.55M 2.0×0.8×1.75M
Customized hanger shape & size available! Provide your hanger photo, drawing, or sample, and we will adjust the automatic hanger making machine to produce the exact hanger size and shape you require.
Automatic Galvanised Steel Wire Hanger Machine with 27-30pcs/min Capacity for Laundry Hanger Production 1

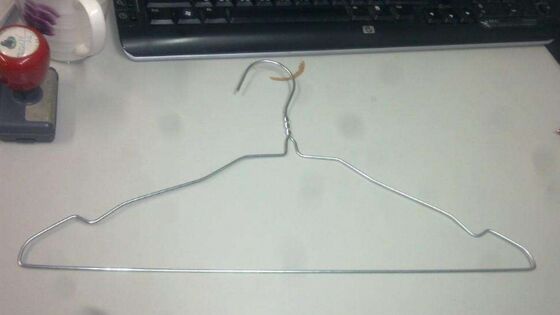

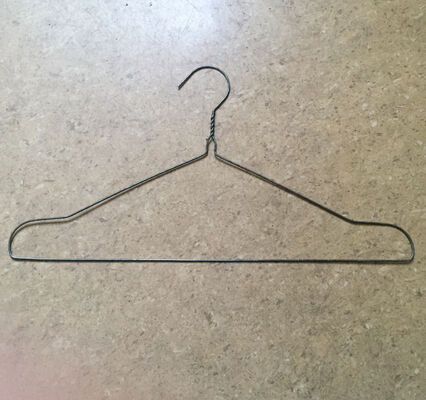

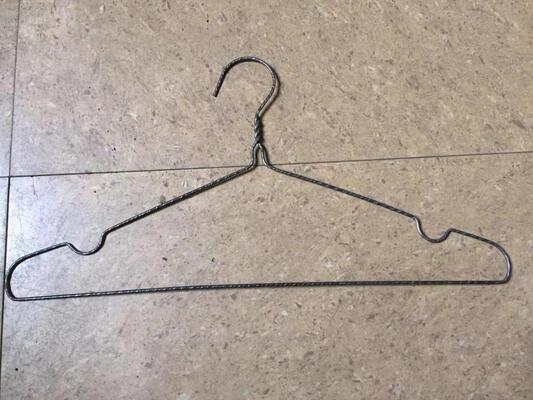

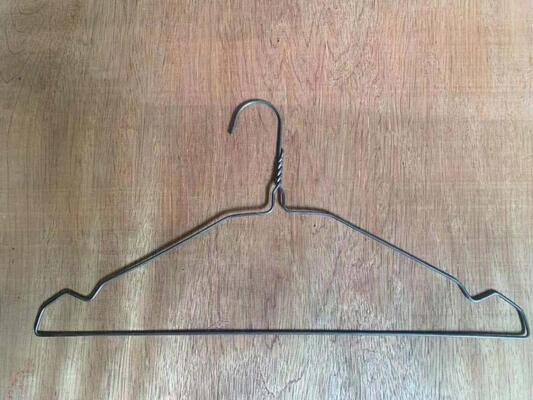

Sample Products
Automatic Galvanised Steel Wire Hanger Machine with 27-30pcs/min Capacity for Laundry Hanger Production 2 Automatic Galvanised Steel Wire Hanger Machine with 27-30pcs/min Capacity for Laundry Hanger Production 3 Automatic Galvanised Steel Wire Hanger Machine with 27-30pcs/min Capacity for Laundry Hanger Production 4 Automatic Galvanised Steel Wire Hanger Machine with 27-30pcs/min Capacity for Laundry Hanger Production 5 Automatic Galvanised Steel Wire Hanger Machine with 27-30pcs/min Capacity for Laundry Hanger Production 6 Automatic Galvanised Steel Wire Hanger Machine with 27-30pcs/min Capacity for Laundry Hanger Production 7 Automatic Galvanised Steel Wire Hanger Machine with 27-30pcs/min Capacity for Laundry Hanger Production 8 Automatic Galvanised Steel Wire Hanger Machine with 27-30pcs/min Capacity for Laundry Hanger Production 9
Packing & Shipping
Sea-worthy plywood cases for secure international shipping
Our Services
Automatic Galvanised Steel Wire Hanger Machine with 27-30pcs/min Capacity for Laundry Hanger Production 10
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing opportunities
Automatic Galvanised Steel Wire Hanger Machine with 27-30pcs/min Capacity for Laundry Hanger Production 11
After-Sales Service
  • Machine installation training
  • Comprehensive machine operation training
  • Engineers available for overseas machinery service
